Underground Fully Welded Ball Valve WCB, LCB, LF2, A105

1. Without leakage


The ball valve body is reducing bore fullly welded valve, without external leakage point, the only position which may leak is the rotate position of valve stem, and gas welded body ball valve stem could adopts triple sealing to ensure no leakage, with high safety and reliability.

2. Long structure, suitable for end welding, installation is safe and reliable
Compared to regular welded body valve, underground welded body ball valve face to face length us much longer, to ensure the on site end welding heating will not damage the valve inside sealing component.

3. Easy to install, installation cost is low
Gas underground welded body ball valve is designed with compact body, volume is small, easy to install, No need large manhole and valve room. Operating staff no need to orate underground. Installation cost is small, easy to operate.

Parameter

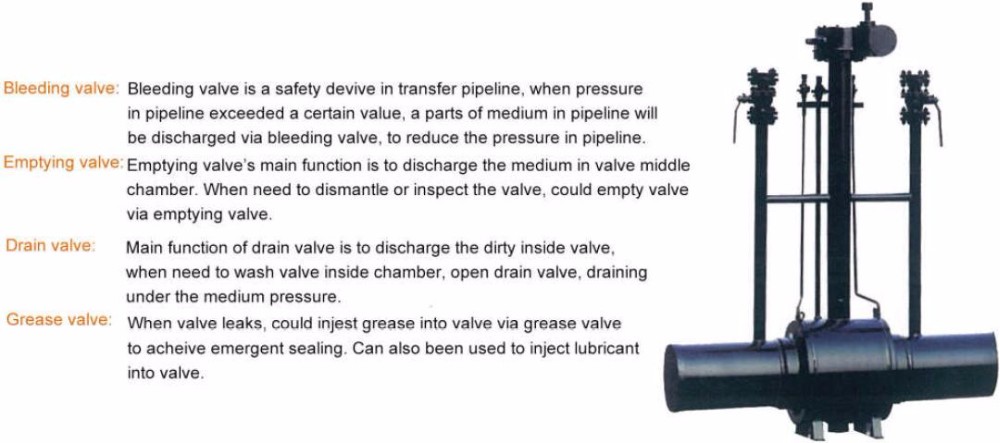

Underground Fully Welded Ball Valve Data Sheet Part 1 Underground Fully Welded Ball Valve Data Sheet Part 2

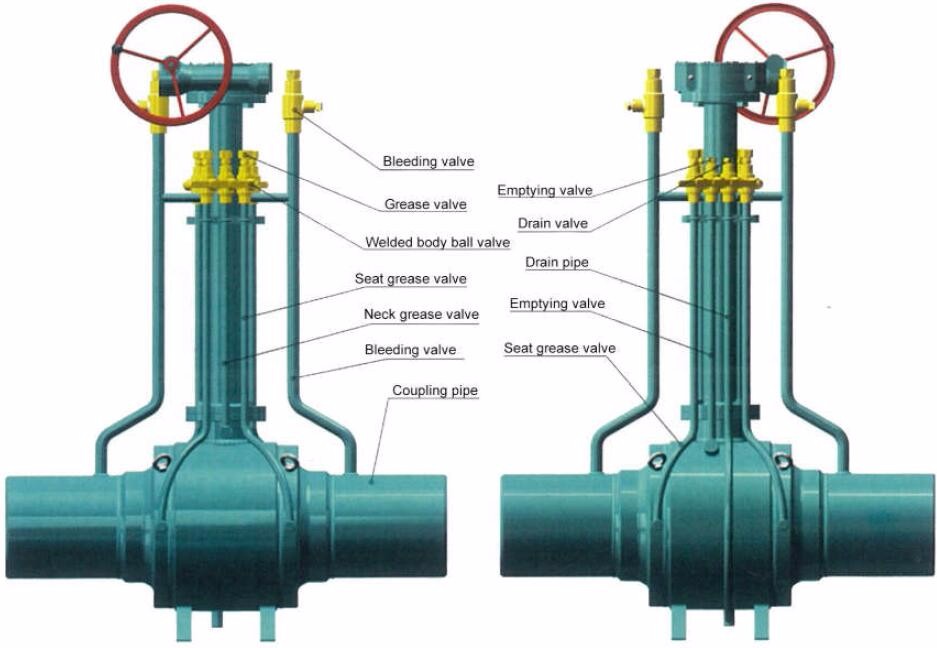

Underground Fully Welded Ball Valve Data Sheet Part 3

Material

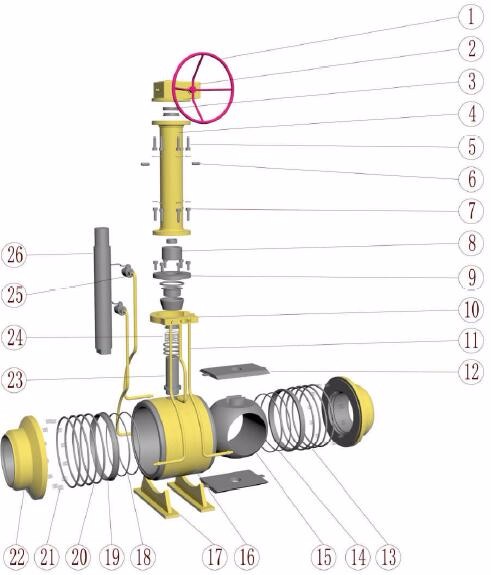

Underground Fully Welded Ball Valve Material Parts

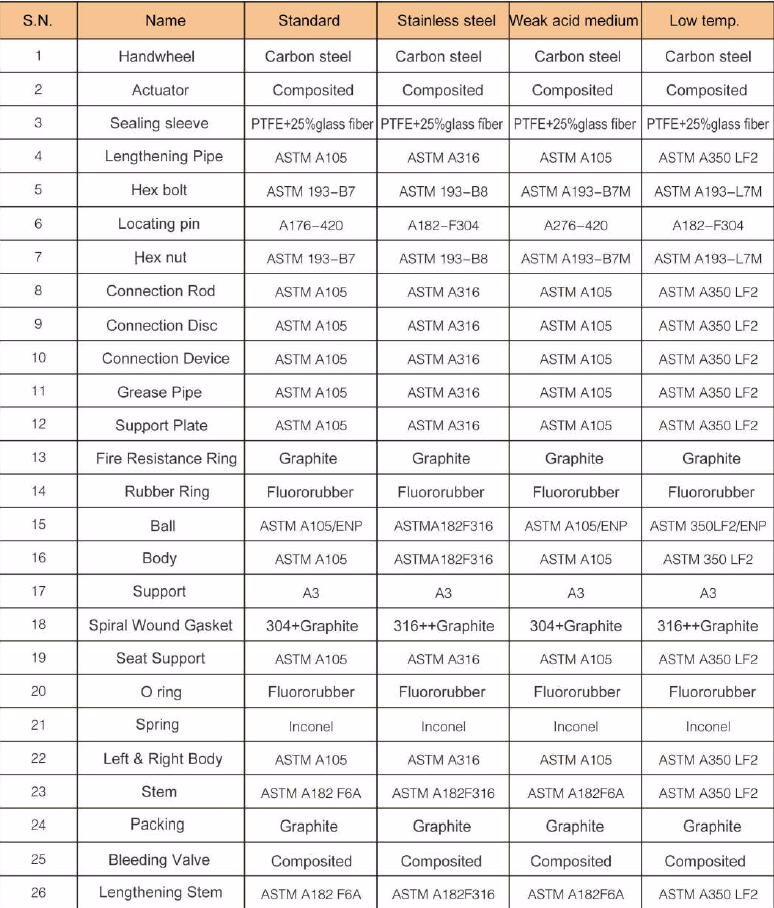

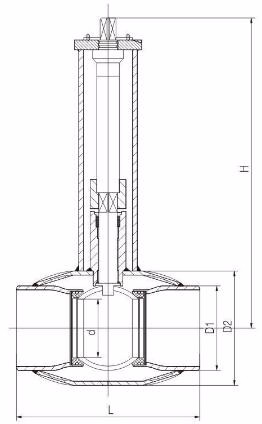

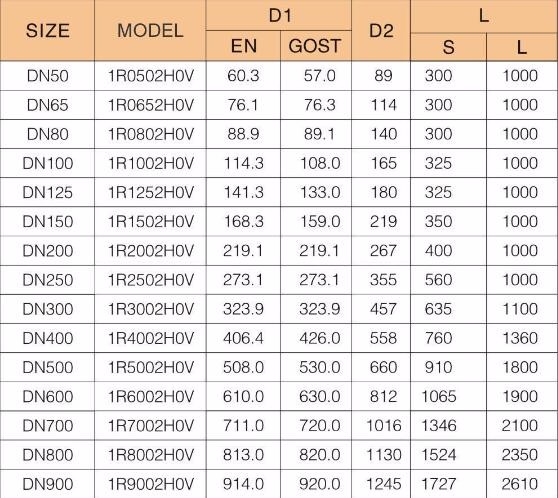

Underground Fully Welded Ball Valve Material Underground Fully Welded Ball Valve DrawingUnderground Fully Welded Ball Valve Dimensions
