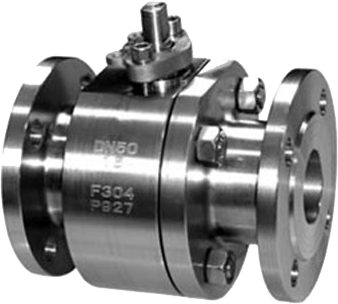

Class 150LB-300LB Floating Ball Valve

Performance:
Size: 1/2"~4"(DN 15 - 200 mm).
Class: 150~2500 (PN 1.6 - 42 MPa).
Split Body, Forged Carbon Steel.
Floating Ball, Full & Reduced Bore.
Anti-Static Device.
Blow-out Proof Stem.
Fire Safe Design.
Low Emission.
Design: ASME B16.34/BS 5351.
Face to Face: ASME B16.10.
End to End: ASME B16.10.
End Flange: ASME B16.5.
BW End: ASME B16.25.
Test: API 598 / BS 6755.
Fire Safe Test: API 607/API 6FA.
Special: NACE MR-01-75.

Class 150LB-300LB Floating Ball Valve, Full / Reduced Bore

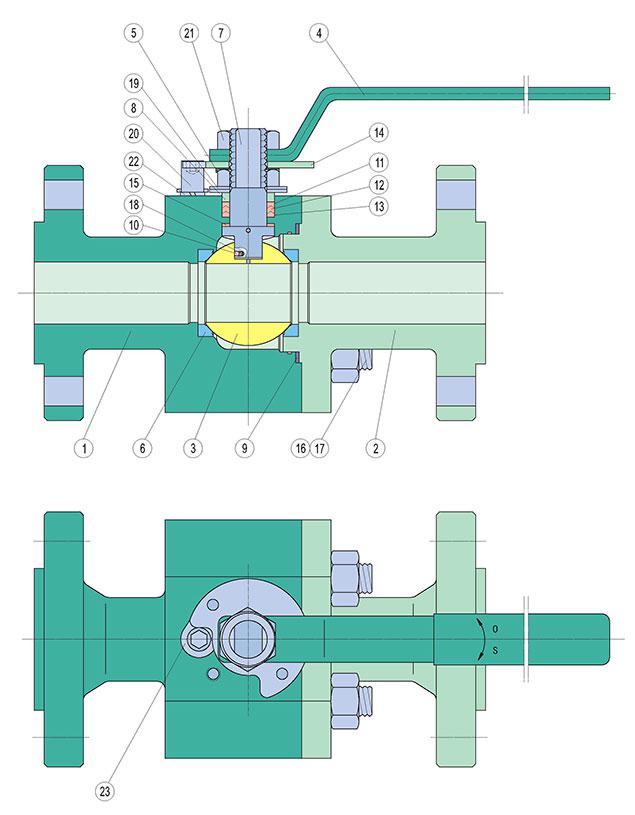

No. Part A105/ENP A105/316 F316/316 LF2/316NACE
1 Body ASTM A105 ASTM A105 ASTM A182-F316 ASTM A350-LF2
2 Adapter ASTM A105 ASTM A105 ASTM A182-F316 ASTM A350-LF2
3 Ball ASTM A105/ENP ASTM A182-F316 ASTM A182-F316 ASTM A182-F316
4 Lever Carbon Steel Carbon Steel Carbon Steel Carbon Steel
5 Locked Washer Carbon Steel Carbon Steel Stainless Steel Carbon Steel
6 Seat PTFE / Nylon PTFE / Nylon PTFE / Nylon PTFE / Nylon
7 Stem ASTM A182-F6a ASTM A182-F316 ASTM A182-F316 ASTM A182-F316
8 Gland ASTM A276-410 ASTM A182-F316 ASTM A182-F316 ASTM A182-F316
9 Body Gasket 304SS+Graphite 316SS+Graphite 316SS+Graphite 316SS+Graphite
10 Steel Ball Stainless Steel Stainless Steel Stainless Steel Stainless Steel
11 Top Packing PTFE / Graphite PTFE / Graphite PTFE / Graphite PTFE / Graphite
12 Middle Packing PTFE / Graphite PTFE / Graphite PTFE / Graphite PTFE / Graphite
13 Bottom Packing PTFE / Graphite PTFE / Graphite PTFE / Graphite PTFE / Graphite
14 Stop Plate Carbon Steel Carbon Steel Stainless Steel Carbon Steel
15 Thrust Washer PTFE PTFE PTFE PTFE
16 Body Stud ASTM A193-B7 ASTM A193-B7 ASTM A193-B8 ASTM A320-L7M
17 Body Nut ASTM A194-2H ASTM A194-2H ASTM A194-8 ASTM A194-7M
18 Antistatic Spring Stainless Steel Stainless Steel Stainless Steel Stainless Steel
19 Dished Spring Alloy Steel Alloy Steel Stainless Steel Alloy Steel
20 Screw Carbon Steel Carbon Steel Stainless Steel Carbon Steel
21 Nut Carbon Steel Carbon Steel Stainless Steel Carbon Steel
22 Washer Carbon Steel Carbon Steel Stainless Steel Carbon Steel
23 Locked Plate Carbon Steel Carbon Steel Stainless Steel Carbon Steel

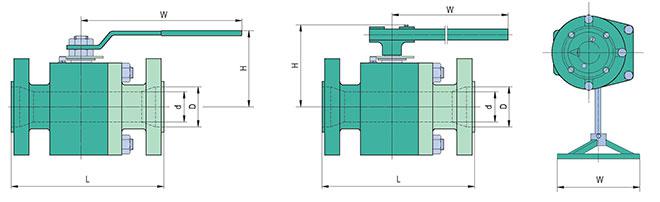

Full Bore-Dimensions and Weights:
Class 150LB-300LB Floating Ball Valve, Full Bore


Size D L H W Weight
in mm mm mm mm Kg
1/2 13 108 75 130 2.8
3/4 19 117 84 170 3.7
1 25 127 90 170 5.3
1-1/2 38 165 127 250 8.3
2 51 178 140 250 11.2
2-1/2 64 191 164 350 18.4
3 76 203 177 350 23
4 102 229 206 420 39.3



Size D L H W Weight
in mm mm mm mm Kg
1/2 13 108 75 130 3
3/4 19 117 84 170 4
1 25 127 90 170 6.6
1-1/2 38 165 127 250 12.9
2 51 178 140 250 18.9
2-1/2 64 191 164 350 28
3 76 203 177 350 39
4 102 229 206 420 60


Reduced Bore-Dimensions and Weights:
Class 150LB-300LB Floating Ball Valve, Reduced Bore


Size d D L H W Weight
in mm mm mm mm mm Kg
3/4*1/2 13 19 117 75 130 3.5
1*3/4 19 25 127 84 170 5
1-1/2*1 25 38 165 90 170 7.5
2*1-1/2 38 51 178 127 250 10
2-1/2*2 51 64 191 140 250 16
3*2 51 76 203 140 250 21
4*3 76 102 229 177 350 35
6*4 102 152 267 206 420 73



Size d D L H W Weight
in mm mm mm mm mm Kg
3/4*1/2 13 19 117 75 130 3.7
1*3/4 19 25 127 84 170 5.8
1-1/2*1 25 38 165 90 170 10.5
2*1-1/2 38 51 178 127 250 16.1
2-1/2*2 51 64 191 140 250 24.5
3*2 51 76 203 140 250 34.7
4*3 76 102 229 177 350 53
6*4 102 152 267 206 420 100
