Class 1500LB-2500LB Floating Ball Valves

Performance:
Size: 1/2"~4"(DN 15 - 200 mm).
Class: 150~2500 (PN 1.6 - 42 MPa).
Split Body, Forged Carbon Steel.
Floating Ball, Full & Reduced Bore.
Anti-Static Device.
Blow-out Proof Stem.
Fire Safe Design.
Low Emission.
Design: ASME B16.34/BS 5351.
Face to Face: ASME B16.10.
End to End: ASME B16.10.
End Flange: ASME B16.5.
BW End: ASME B16.25.
Test: API 598 / BS 6755.
Fire Safe Test: API 607/API 6FA.
Special: NACE MR-01-75.

Class 1500LB-2500LB Floating Ball Valves, Full / Reduced Bore

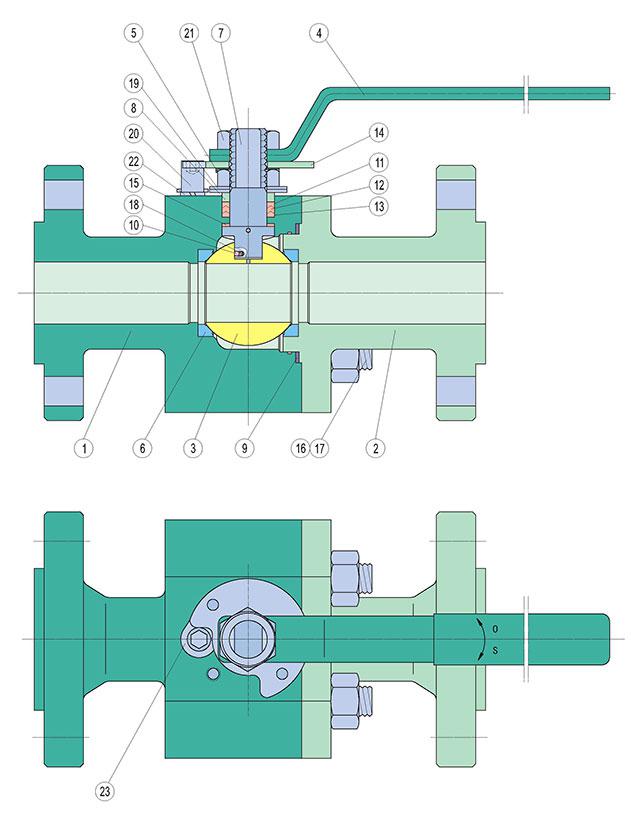

No. Part A105/ENP A105/316 F316/316 LF2/316NACE
1 Body ASTM A105 ASTM A105 ASTM A182-F316 ASTM A350-LF2
2 Adapter ASTM A105 ASTM A105 ASTM A182-F316 ASTM A350-LF2
3 Ball ASTM A105/ENP ASTM A182-F316 ASTM A182-F316 ASTM A182-F316
4 Lever Carbon Steel Carbon Steel Carbon Steel Carbon Steel
5 Locked Washer Carbon Steel Carbon Steel Stainless Steel Carbon Steel
6 Seat PTFE / Nylon PTFE / Nylon PTFE / Nylon PTFE / Nylon
7 Stem ASTM A182-F6a ASTM A182-F316 ASTM A182-F316 ASTM A182-F316
8 Gland ASTM A276-410 ASTM A182-F316 ASTM A182-F316 ASTM A182-F316
9 Body Gasket 304SS+Graphite 316SS+Graphite 316SS+Graphite 316SS+Graphite
10 Steel Ball Stainless Steel Stainless Steel Stainless Steel Stainless Steel
11 Top Packing PTFE / Graphite PTFE / Graphite PTFE / Graphite PTFE / Graphite
12 Middle Packing PTFE / Graphite PTFE / Graphite PTFE / Graphite PTFE / Graphite
13 Bottom Packing PTFE / Graphite PTFE / Graphite PTFE / Graphite PTFE / Graphite
14 Stop Plate Carbon Steel Carbon Steel Stainless Steel Carbon Steel
15 Thrust Washer PTFE PTFE PTFE PTFE
16 Body Stud ASTM A193-B7 ASTM A193-B7 ASTM A193-B8 ASTM A320-L7M
17 Body Nut ASTM A194-2H ASTM A194-2H ASTM A194-8 ASTM A194-7M
18 Antistatic Spring Stainless Steel Stainless Steel Stainless Steel Stainless Steel
19 Dished Spring Alloy Steel Alloy Steel Stainless Steel Alloy Steel
20 Screw Carbon Steel Carbon Steel Stainless Steel Carbon Steel
21 Nut Carbon Steel Carbon Steel Stainless Steel Carbon Steel
22 Washer Carbon Steel Carbon Steel Stainless Steel Carbon Steel
23 Locked Plate Carbon Steel Carbon Steel Stainless Steel Carbon Steel

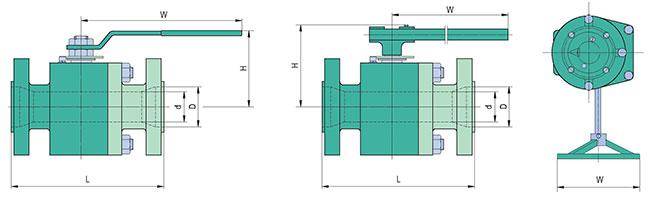

Full Bore-Dimensions and Weights:
Class 1500LB-2500LB Floating Ball Valves, Full Bore


Size D L H W Weight
in mm mm mm mm Kg
1/2 13 216 75 140 5
3/4 19 229 91 180 8
1 25 254 108 250 10
1-1/2 38 305 133 400 20
2 51 368 150 500 30
3 76 470 160 500 65



Size D L H W Weight
in mm mm mm mm Kg
1/2 13 264 88 230 7.5
3/4 19 273 117 230 12
1 25 308 128 300 15
1-1/2 38 384 148 400 30
2 51 451 183 500 37.5


Reduced Bore-Dimensions and Weights:
Class 1500LB-2500LB Floating Ball Valves, Reduced Bore


Size D D L H W Weight
in mm mm mm mm mm Kg
3/4*1/2 13 19 229 75 140 7
1*3/4 19 25 254 91 180 9.5
1-1/2*1 25 38 305 108 250 16.5
2*1-1/2 38 51 368 133 400 23
3*2 51 76 470 150 500 60
4*3 76 102 546 160 500 78



Size d D L H W Weight
in mm mm mm mm mm Kg
3/4*1/2 13 19 273 88 230 11
1*3/4 19 25 308 117 230 14
1-1/2*1 25 38 384 128 300 25
2*1-1/2 38 51 451 148 400 35
3*2 51 76 578 183 500 60
