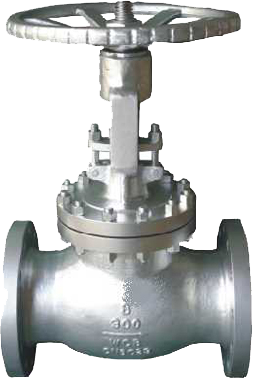

Cast Steel Globe Valve, Class 300 LB, A216 WCB, BS 1873

Model No.: SJ-GLOBE-06 Hits: 70

China Class 300 LB Cast Steel Globe Valve Manufacturer Shinjo Supplies Class 300 LB Cast Steel Globe Valve, ASTM A216 GR WCB, BS 1873 / ASME B16.34.

Key Specifications / Features

Cast Steel Globe Valve, Class 300 LB, A216 WCB, BS 1873Parts & Materials:
1. Body: ASTM A216 GR.WCB.
2. Seat Ring: ASTM A105 + Stellite Faced.
3. Disc: ASTM A105 + 13Cr Faced.
4. Disc Thrust Plate: ASTM A276 Type 420.
5. Disc Nut: ASTM A276 Type 410.
6. Stem: ASTM A182 GR.F6.
7. Bonnet Bolt Nuts: ASTM A194 GR.2H.
8. Bonnet Bolts: ASTM A193 GR.B7.
9. Gasket: Soft Iron + Graphite.
10. Backseat Bushing: ASTM A276 Type 410.
11. Stem Packing: Braided Graphite & Die formed Graphite Ring.
12. Bonnet: ASTM A216 GR.WCB.
13. Eyebolt Pins: Carbon Steel.
14. Gland: ASTM A276 Type 410.
15. Gland Flange: ASTM A216 GR.WCB.
16. Gland Eye Bolts: ASTM A307 GR.B.
17. Eyebolt Nuts: ASTM A194 GR.2H.
18. Yoke Bush: ASTM A439 GR.D-2.
19. Screw: Carbon Steel.
20. Hand Wheel: Ductile Iron.
21. Hand Wheel Nut: ASTM A194 GR.2H.
22. Washer: Carbon Steel.
23. Yoke: ASTM A216 GR.WCB.
24. Yoke Pan Bolt Nuts: ASTM A194 GR.2H.
25. Yoke Pan Bolt: ASTM A193 GR.B7.
26. Bearing: Steel.
27. Lantern Ring On Request: ASTM A276 Type 410.

Lantern Ring

Gear

NPS
d
 		 in 2 2-1/2 3 4 5 6 8 10 12
mm 51 64 76 102 127 152 203 254 305
L-L1
(RF-BW)
 		 in 10.50 11.50 12.50 14.00 15.75 17.50 22.00 24.50 28.00
mm 267 292 318 356 400 444 559 622 711
L2
(RTJ)
 		 in 11.12 12.12 13.12 14.62 16.37 18.12 22.62 25.12 28.62
mm 283 308 333 371 416 460 575 638 727
H
(open)
 		 in 13.74 14.80 16.93 19.13 22.05 24.33 36.89 37.36 39.17
mm 349 376 430 486 560 618 937 949 995
W
 		 in 7.87 9.84 9.84 13.78 15.75 17.72 2.05 25.20 18.11
mm 200 250 250 350 400 450 560 640 460
WT(Kg)
 		 BF 31 43 57 86 130 168 280 385 724
BW 26 38 44 68 110 138 228 329 618


Features:
Outside Screw and Yoke (OS & Y), Rising Stem.
Bolted Bonnet.
Conic Disc.
Extended Bonnet for Cryogenic Services.
IMPact hand wheel optional.
Gear Optional.

Specifications:
Design: ASME B16.34/BS 1873.
Face to Face: ASME B16.10.
End to End: ASME B16.10.
End Flange: ASME B16.5.
BW End: ASME B16.25.
Test: API 598.
Special: NACE MR-01-75
