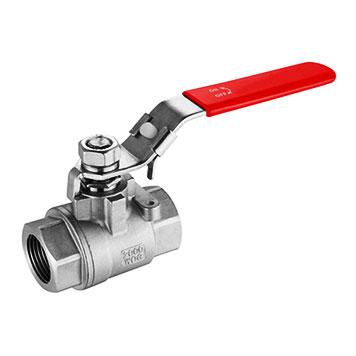

2000PSI Two-Piece PTFE/RPTFE/PPL Seat Cast Floating Ball Valve

Features:
Blow-out Proof Stem.
Pressure Balance Hole in Ball Slot.
Various Thread Standards Available.
Lock device.

Standards:
Design: ASME B16.34.
Wall Thickness: ASME B16.34.
Pipe Thread: ASME B1.20.1.BS21.
DIN 2999/259, ISO 228/1.
JIS B 0203, IS0 7/1.
Inspection & Testing: MSS SP-110, EN 12266.

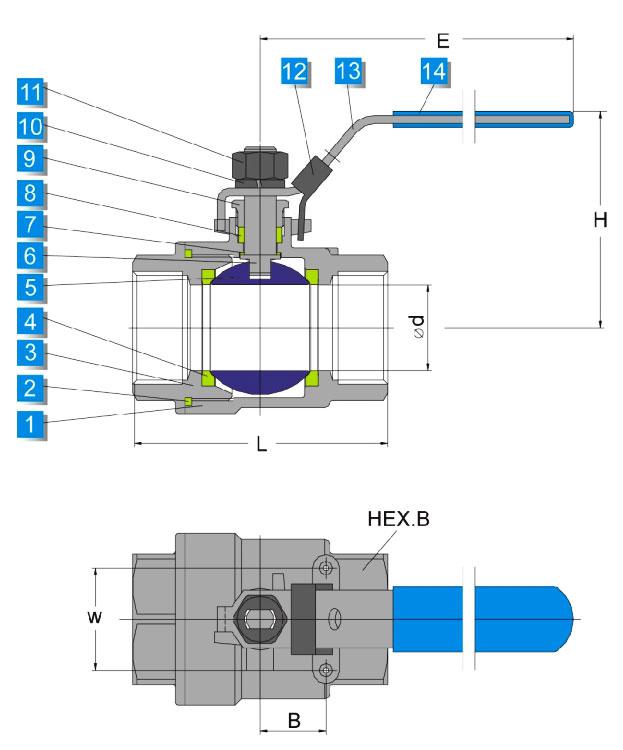

2000 PSI Two-Piece PTFE/RPTFE/PPL Seat Cast Floating Ball Valve Drawing

Parts Name & Material
1.Body: CF8M, CF8, WCB.
2.Body Gasket: PTFE.
3.Cap: CF8M, CF8, WCB.
4.Seat: PTFE, RPTFE, PPL.
5.Ball: CF8M: CF8.
6.Stem: SUS316: SUS304.
7.Thrust Washer: PTFE.
8.Stem Packing: PTFE: RPTFE.
9.Packing gland: SUS304.
10.Sprinq Washer: SUS304.
11.Stem Nut: A193-B8.
12.Lockinq Device: SUS301.
13.Handle: SUS304.
14.Handle Cover: Plastic.
Dimension & Thread

Size L Φd H E W B Thread
1/4" 55 10.5 56 100 29 21 NPT, MPT, BSPT, BSP, DIN, PT, etc.
3/8" 55 10.5 56 100 29 25
1/2" 63 15 65.5 120 29 31
3/4" 74.5 20 72 150 33 36.5
1" 87.5 25 81 170 33 43
1-1/4" 102 32 88 170 38 52
1-1/2" 107 38 97 190 38 60
2" 124 48 121 190 38 72
