Stainless steel pipe have been used widely because of it’s good corrosion-resistance and oxidation, withstand high temperatures, provide cleanliness and low maintenance costs.
316 boiler tubing is kind of austenitic stainless steel and is a material of ASTM A 312/ASME SA213.

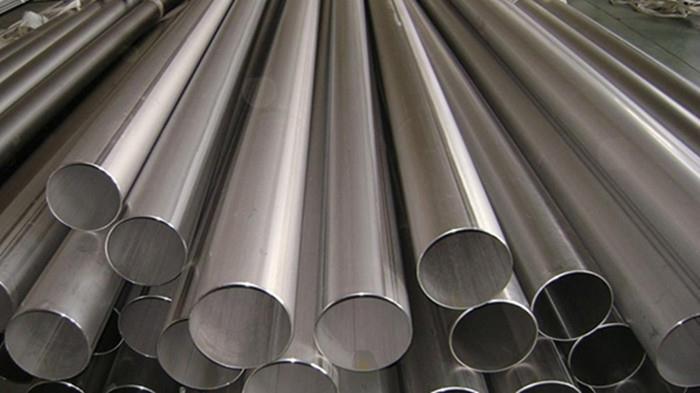

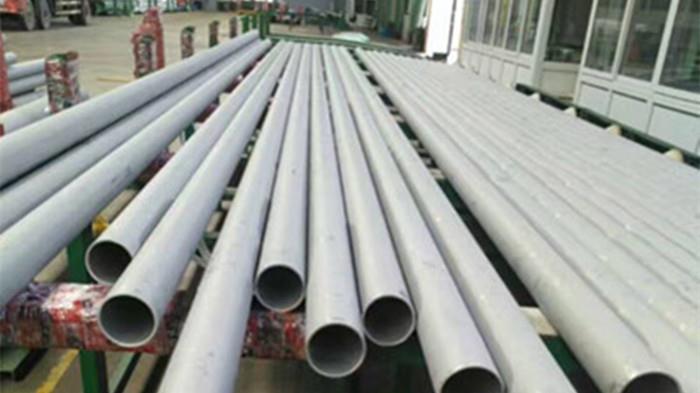

316 seamless boiler pipes
OD from 1/4’’ to 16’’Wall Thickness: 0.0196’’ up to 1.378’’
OD from 1/8’’ to 80’’
Wall Thickness: Up to 60 mm (2.36’’)
316 boiler pipe Relevant materials
UNS
WERKSTOFF NR.
JIS
AFNOR
BS
EN
S31600
1.4401
1.4436
SUS 316
Z7CND17-11-02
316S31
316S33
X5CrNi Mo17-12-2
X3CrNi Mo17-13-3
Chemical Composition of 316 SS boiler pipe
C max
Ni
N max
Cr
Si max
Mn max
P max
S max
Mo
0.08
10-14
0.1
16-18
0.75
2
0.045
0.030
2-3
Mechanical Properties of 316 SS boiler tube
Tensile Strength
Mpa min
Yield Strength
0.2% Proof (Mpa) min
Elongation
(% in 50mm) min
Hardness
Rockwell B
(HR B )max
Brinell
(HB) max
515
205
40%
95
217
We supply both 316 seamless boiler pipe and 316 welded boiler pipe,If you would like TP316 boiler pipes or other type of stainless steel pipe for boiler, please do not hesitate to contact our experienced sales!.
